MPN: 02864-001
Axis Communications

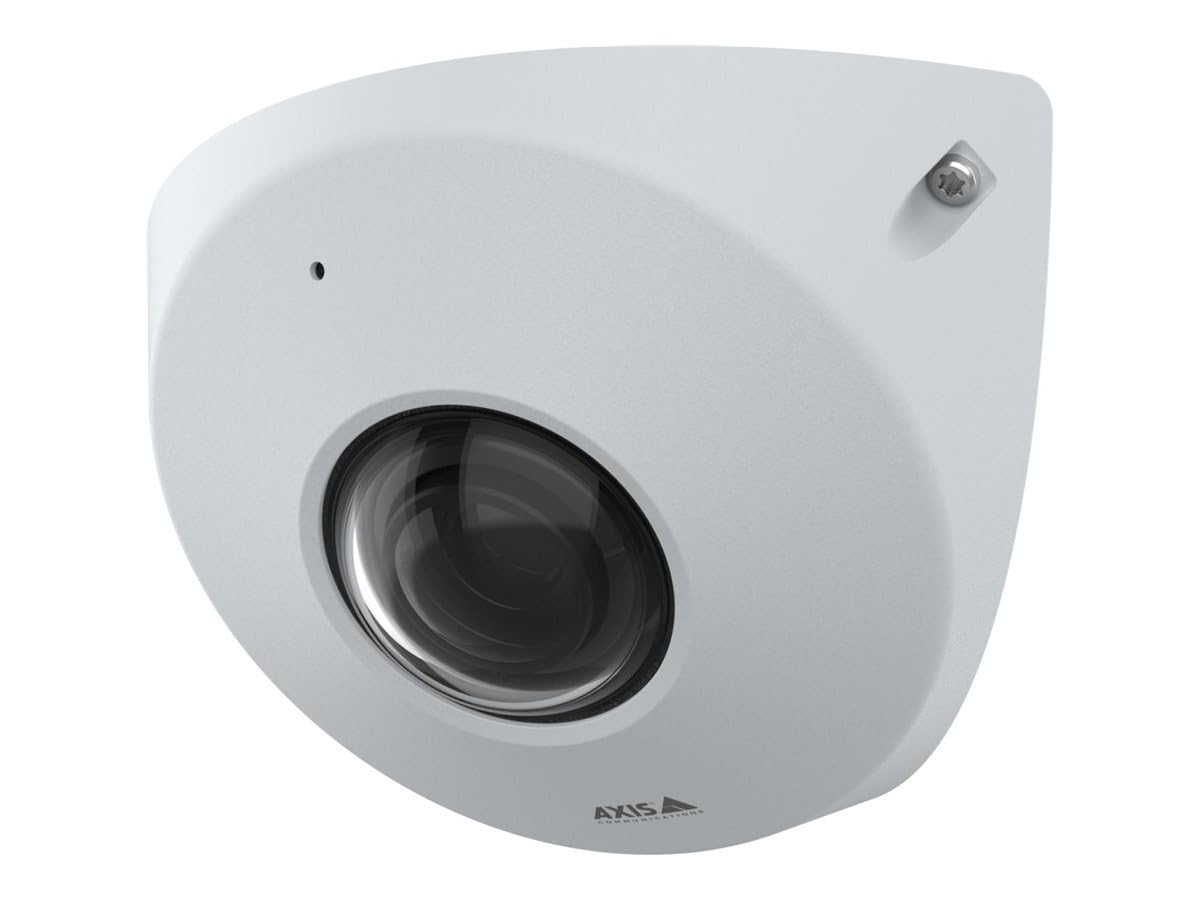

Axis P91 Series P9117-PV - Network Pano 02864-001
Axis P91 Series P9117-PV - Network Pano 02864-001
Regular price
$750.99
Regular price
$849.00
Sale price
$750.99
Sales tax, where it applies, is calculated at checkout.
- Free standard shipping to the 48 states and DC
- Ships in 1–2 business days; ground delivery usually 3–5 business days after that (shipping policy)
- 30-day returns (refund policy)
- Quote within 1 business day: request a quote
- Purchase orders and tax-exempt orders accepted; Net 30 available to approved business accounts
20 in stock
Quantity
Couldn't load pickup availability
Buying more than one?
Send the quantity and we will price it properly. Volume, government and education pricing, purchase orders and tax-exempt orders all handled.
Request a quote on this partOr call 310-360-1245.
- AXIS P91 Series P9117-PV - Network panoramic camera - dome - indoor - dustproof / vandal proof - colour (day & night) - 6 MP - 2160 x 2160 - fixed iris diaphragm - fixed focal length - audio - LAN 10/100 - H.264B, H.264M, H.264H, H.265, MJPEG,
Specifications
| Model | P9117-PV |
|---|---|
| Maximum Video Resolution | 2160 x 2160 |
| Maximum Frame Rate | 60fps |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Focal Length | 1.1mm |
| Lens Type | Fixed |
| Horizontal Field of View | 176° |
| Vertical Field of View | 176° |
| Wide Dynamic Range | Yes |
| SD Card Slot | Yes |
| Power over Ethernet (PoE) | Yes |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
| Operating Temperature | -15-50°C |
Specifications for part number 02864-001. Each figure matched the manufacturer's published specifications when we checked on 2026-10-12. Confirm any figure your design depends on against the current datasheet before ordering.
