MPN: 02968-001
Axis Communications

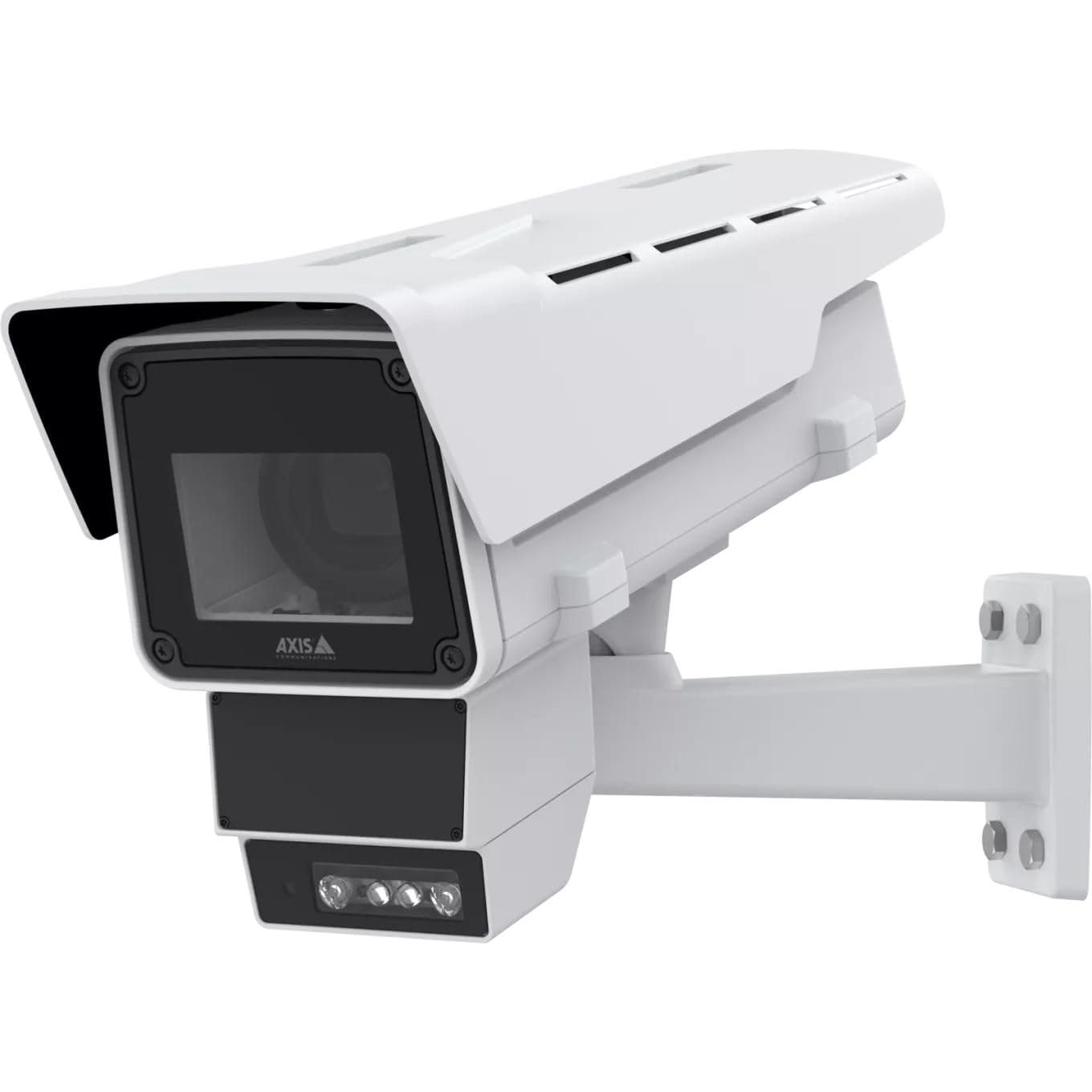

Axis Q1686-DLE - Network Surveillance Camera - Bullet - Outdoor - Vandal-Proof/Weather Resistant - 4 MP - 2688 x 1512 - Audio - H.264, H.265, Mjpeg 02
Axis Q1686-DLE - Network Surveillance Camera - Bullet - Outdoor - Vandal-Proof/Weather Resistant - 4 MP - 2688 x 1512 - Audio - H.264, H.265, Mjpeg 02
Regular price
$3,941.52
Regular price
$4,479.00
Sale price
$3,941.52
Sales tax, where it applies, is calculated at checkout.
- Free standard shipping to the 48 states and DC
- 30-day returns (refund policy)
- Quote within 1 business day: request a quote
- Purchase orders and tax-exempt orders accepted; Net 30 available to approved business accounts
Out of stock
Quantity
Couldn't load pickup availability
Out of stock online
That does not mean we cannot get it. We check live distributor stock before quoting, and we will tell you what is actually available and when it ships.
Request availability and pricingOr call 310-360-1245.
- High-Resolution 4MP Network Surveillance Camera: AXIS Q1686-DLE bullet camera delivers crisp 2688 x 1512 resolution for detailed outdoor monitoring with day and night color capabilities
- Durable Outdoor Design: Vandal-proof and weather-resistant construction ensures reliable performance in harsh outdoor environments and protects against tampering
- Versatile Mounting Options: Features C/CS mounting compatibility allowing flexible lens selection and installation configurations to suit various surveillance needs
- Advanced Video Compression: Supports multiple video formats including H.264, H.265, and MJPEG for efficient bandwidth usage and storage optimization
- Integrated Audio and Power: Built-in audio capability for comprehensive surveillance and PoE Class 4 support for simplified installation with single-cable power and data transmission
Specifications
| Model | Q1686-DLE |
|---|---|
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 60fps |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Horizontal Field of View | 46.22-9.16° |
| Vertical Field of View | 26.20-5.24° |
| Wide Dynamic Range | Yes |
| SD Card Slot | Yes |
| Power over Ethernet (PoE) | Yes |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
| Operating Temperature | -40-60°C |
Specifications for part number 02968-001. Each figure matched the manufacturer's published specifications when we checked on 2026-10-12. Confirm any figure your design depends on against the current datasheet before ordering.
