MPN: 02972-001
Axis Communications

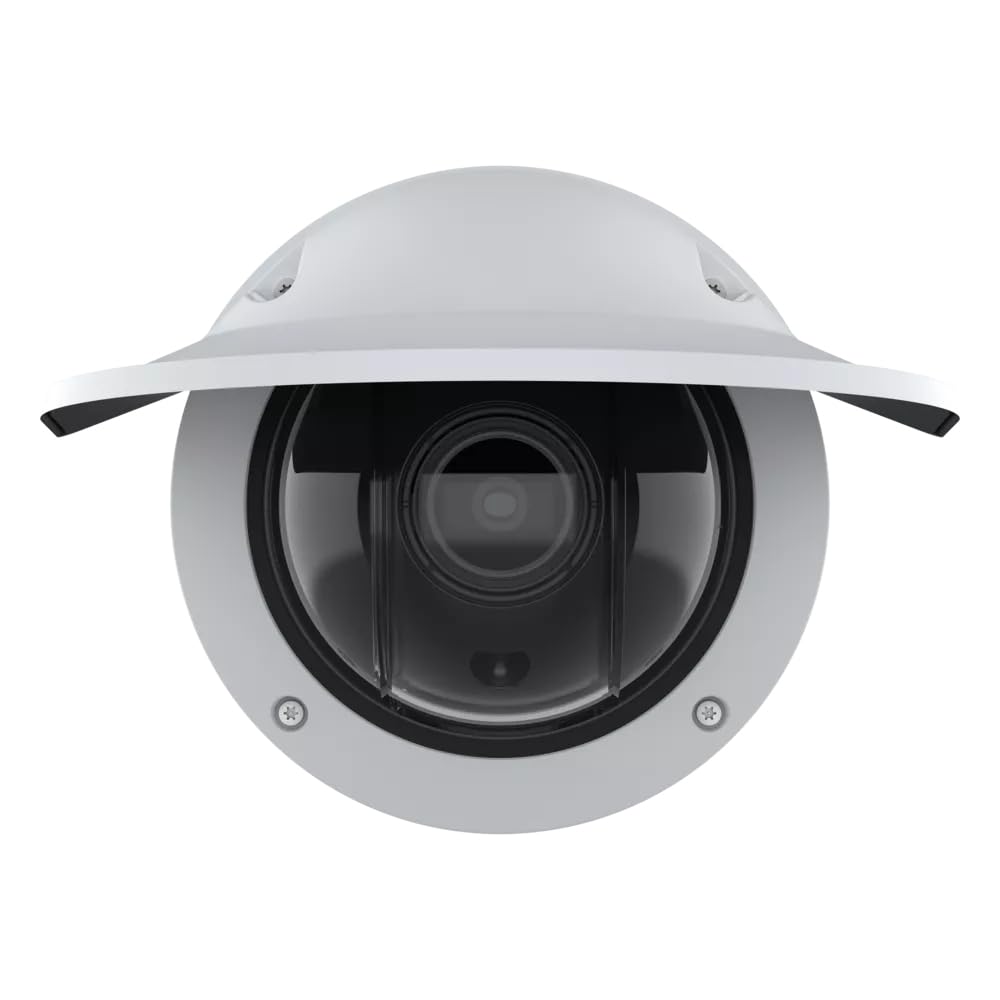

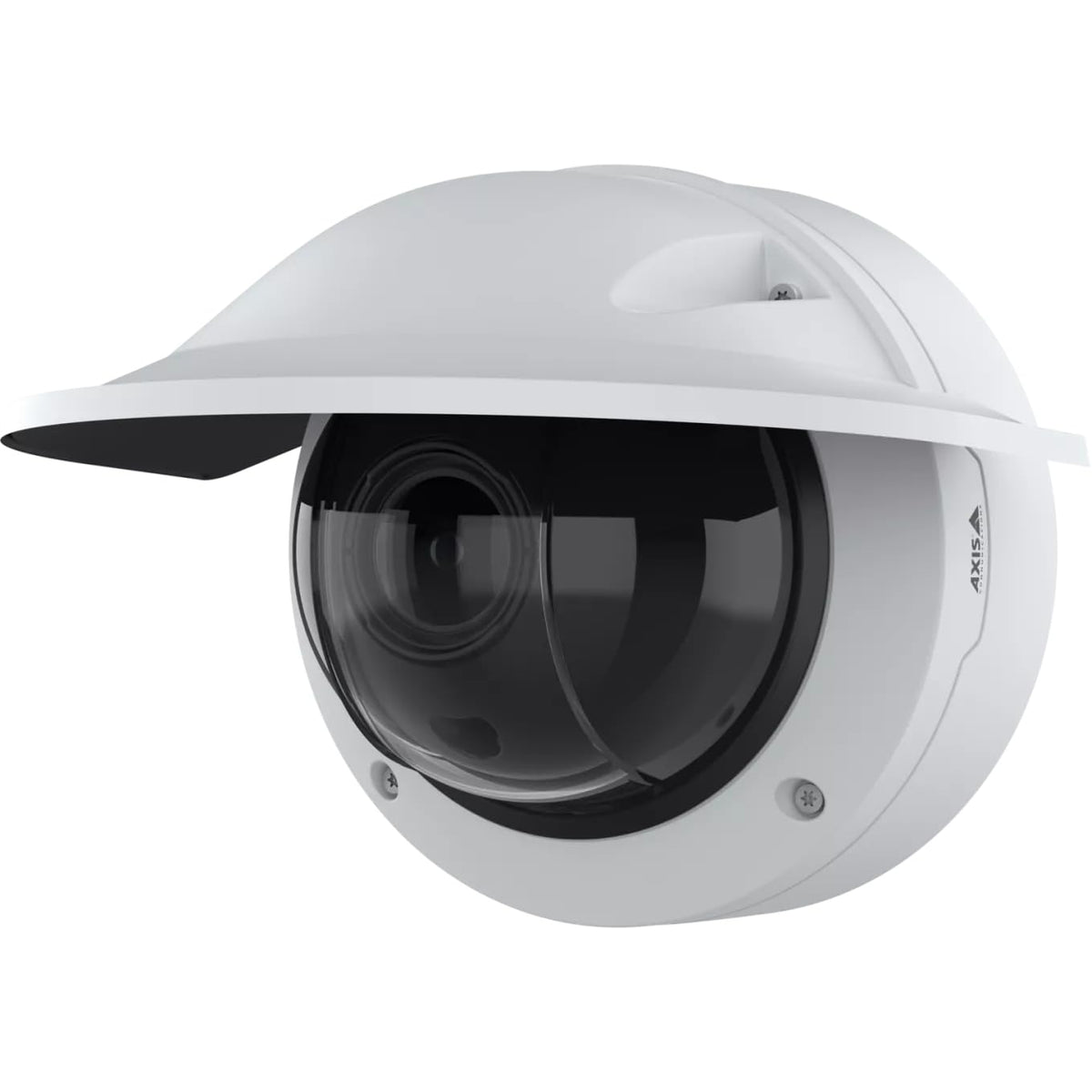

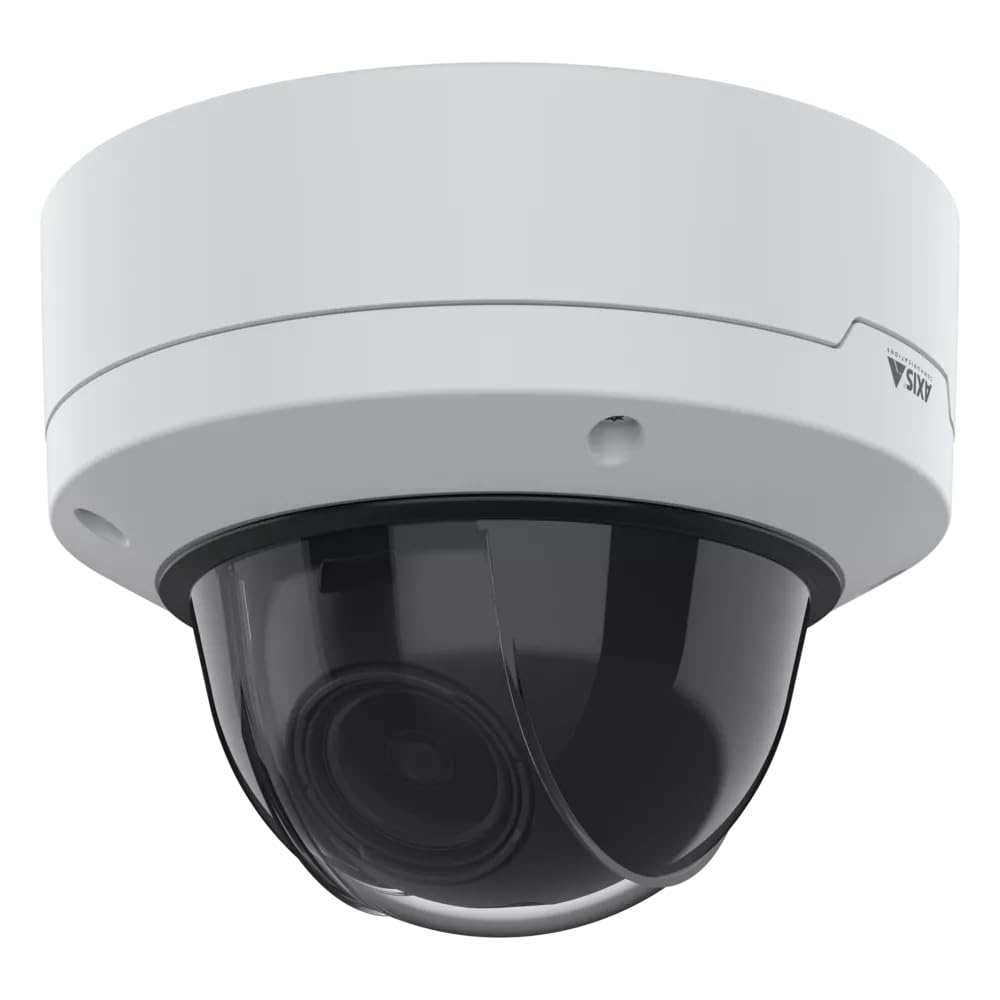

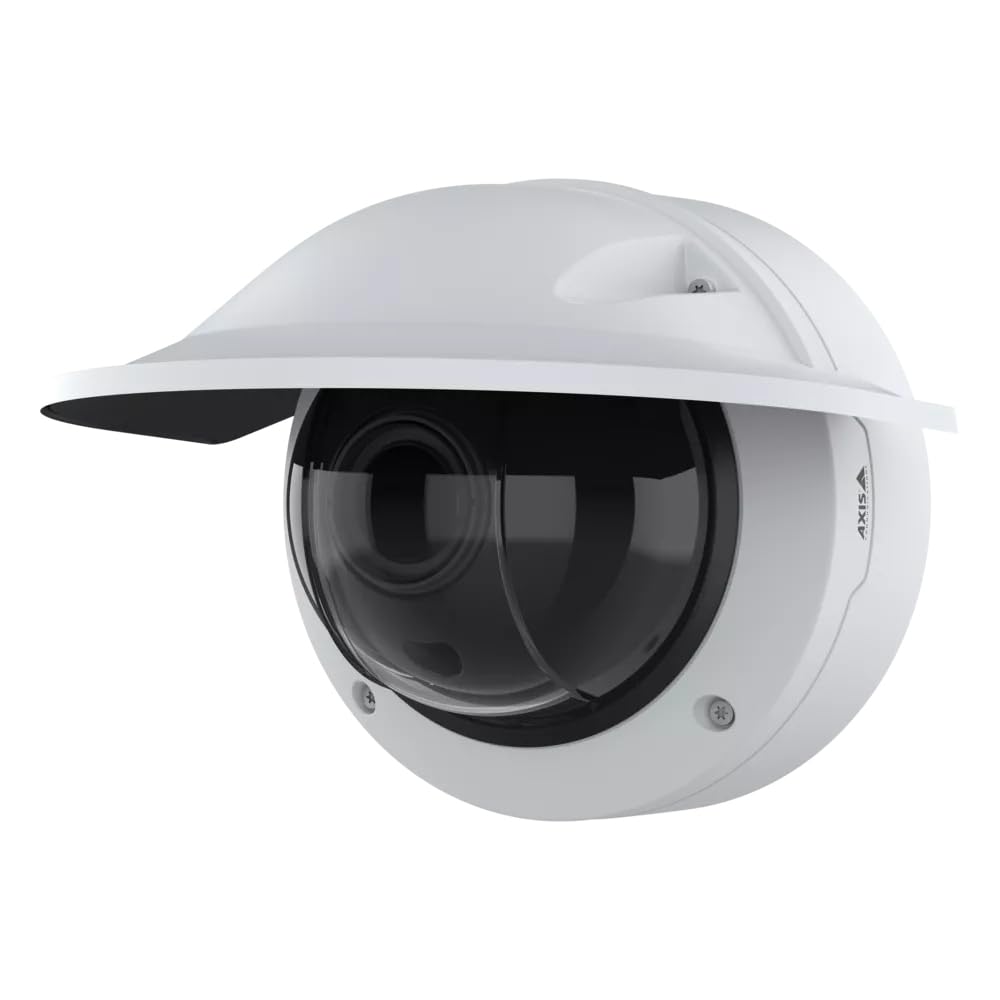

Axis Q3546-LVE 51mm (02972-001)
Axis Q3546-LVE 51mm (02972-001)
Regular price
$1,310.32
Regular price
$1,489.00
Sale price
$1,310.32
Sales tax, where it applies, is calculated at checkout.
- Free standard shipping to the 48 states and DC
- Ships in 1–2 business days; ground delivery usually 3–5 business days after that (shipping policy)
- 30-day returns (refund policy)
- Quote within 1 business day: request a quote
- Purchase orders and tax-exempt orders accepted; Net 30 available to approved business accounts
20 in stock
Quantity
Couldn't load pickup availability
Buying more than one?
Send the quantity and we will price it properly. Volume, government and education pricing, purchase orders and tax-exempt orders all handled.
Request a quote on this partOr call 310-360-1245.
"Advanced 4 MP dome camera with AI analytics. Outstanding image quality thanks to Forensic WDR, Lightfinder 2.0 and Optimized IR with IR shielded dome. Robust, IP66/IP6K9K/IK10 aluminum casing and included weather shield. Varifocal 14-51mm P-iris lens. Multiple, individually configurable streams, AV1/H.264/H.265 with zipstream in up to 4MP @ 120fps. Audio support from 3.5mm audio input, portcast and Edge-to-edge. Supervised digital input and output. Electronic Image Stabilization. Case-open sensor. Shock detector. Level assistant. Axis Edge Vault with FIPS 140-3 level 3 certified. Support for SD card storage. Advanced AI analytics for object classification, counting, masking and more. Powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy."
Specifications
| Model | Q3546-LVE |
|---|---|
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Focal Length | 13-51mm |
| Horizontal Field of View | 33.1-8.5° |
| Vertical Field of View | 18.5-4.8° |
| Wide Dynamic Range | Yes |
| SD Card Slot | Yes |
| Power over Ethernet (PoE) | Yes |
| Ingress Protection Rating | IP66, IP6K9K |
| Impact Protection Rating | IK10 |
| Operating Temperature | -50-55°C |
Specifications for part number 02972-001. Each figure matched the manufacturer's published specifications when we checked on 2026-10-12. Confirm any figure your design depends on against the current datasheet before ordering.
