MPN: 01148-001

Axis Communications

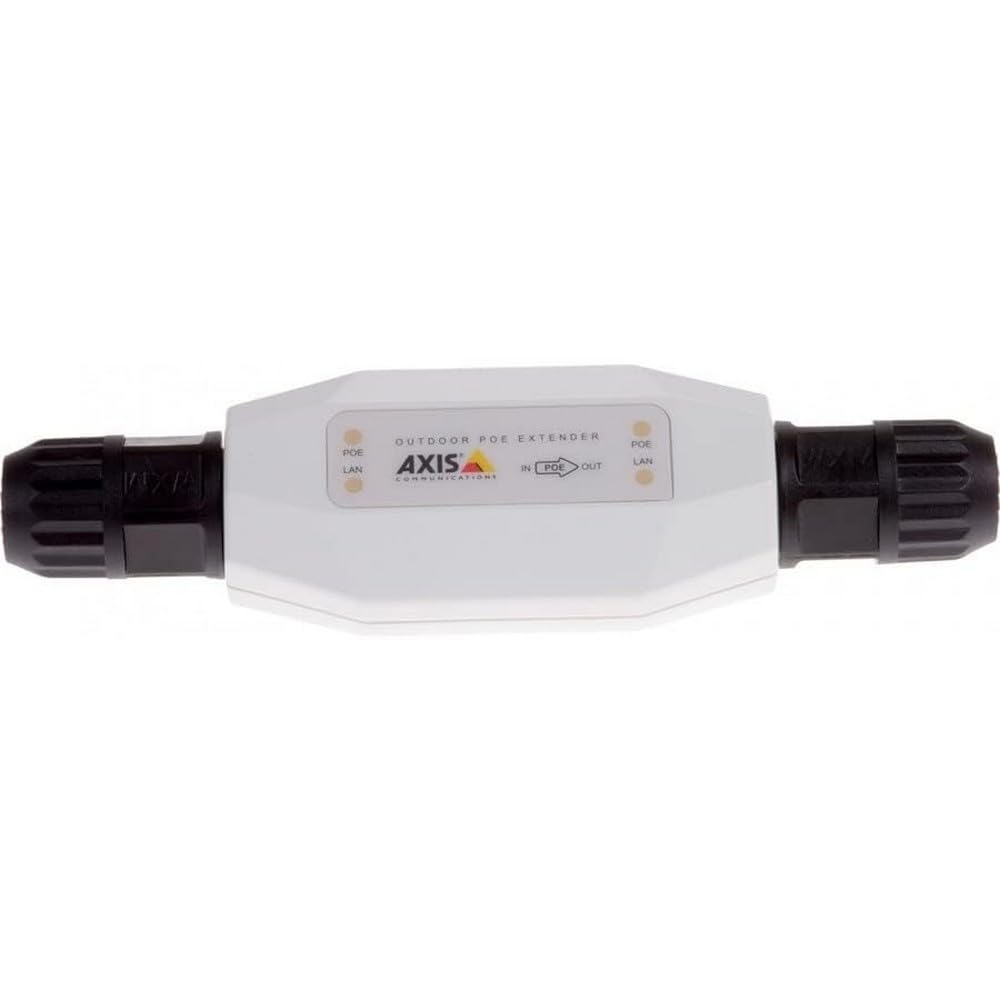

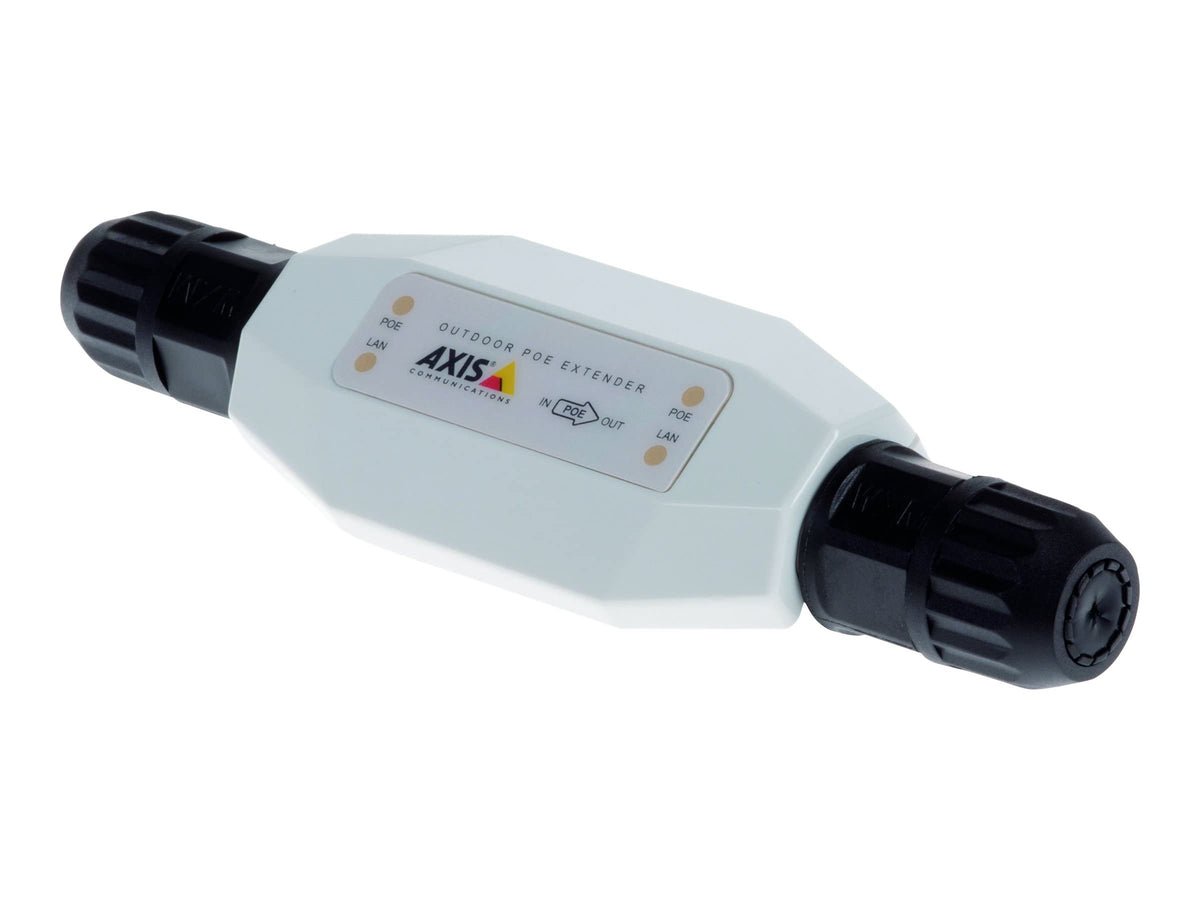

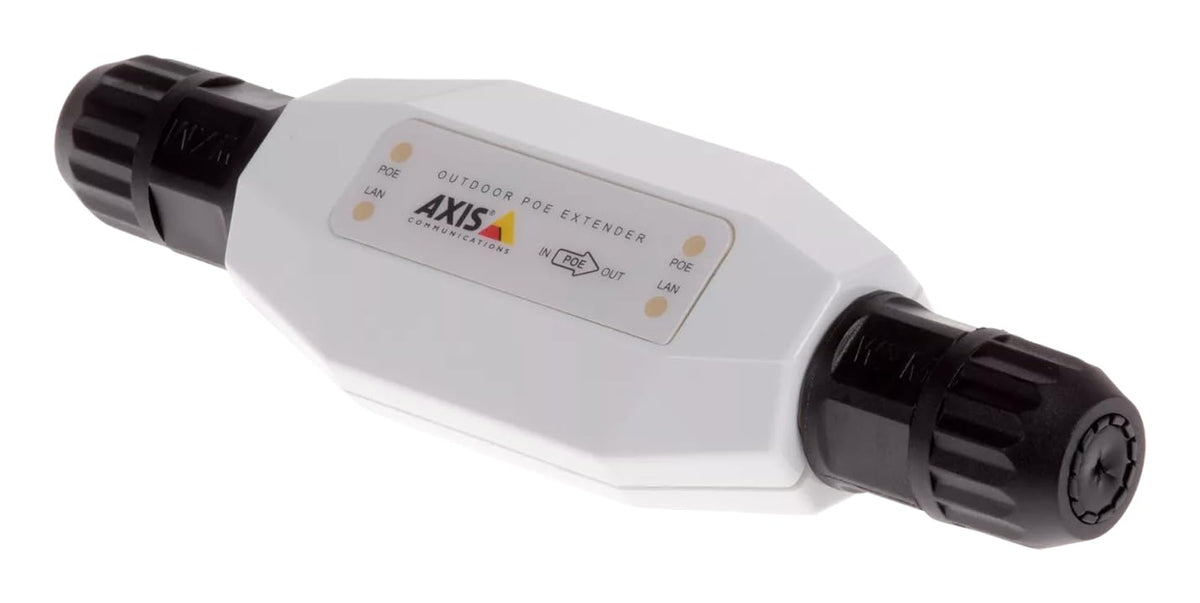

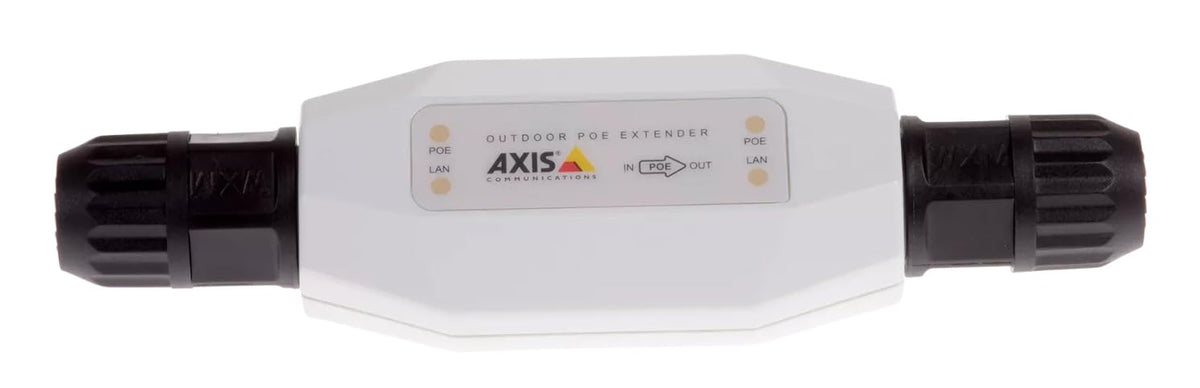

AXIS T8129-E Outdoor PoE Extender 01148-001

AXIS T8129-E Outdoor PoE Extender 01148-001

Regular price $288.29
Regular price $319.00 Sale price $288.29
Sale Sold out
Sales tax, where it applies, is calculated at checkout.
  • Free standard shipping to the 48 states and DC
  • Ships in 1–2 business days; ground delivery usually 3–5 business days after that (shipping policy)
  • 30-day returns (refund policy)
  • Quote within 1 business day: request a quote
  • Purchase orders and tax-exempt orders accepted; Net 30 available to approved business accounts

20 in stock

Quantity

Buying more than one?

Send the quantity and we will price it properly. Volume, government and education pricing, purchase orders and tax-exempt orders all handled.

Request a quote on this part

Or call 310-360-1245.

Place an Axis network video device beyond the standard 100 m (328 ft.) Ethernet cable limit with the AXIS T8129-E Outdoor PoE Extender. It connects in-line with CAT5e or CAT6 cable to extend data and Power over Ethernet without an additional power supply at the extender.

Manufacturer part number: 01148-001

Compatibility and installation requirements

  • Supports IEEE 802.3af PoE, IEEE 802.3at PoE+, and Axis High PoE 60 W.
  • Choose the power source and number of extenders to match the connected device's power requirements and total cable distance. Support for a PoE standard does not guarantee every distance and power-source combination.
  • AXIS specifies 24 AWG or heavier CAT5e or CAT6 cable for typical setups. Full-power PoE/PoE+ and custom High PoE configurations at 200 m require 23 AWG or heavier cable and a suitable Axis midspan.
  • Rugged IP66/IP67-rated enclosure for outdoor installations.
  • Maintains full-rate network performance over the extended connection.

How far can it extend the connection?

AXIS describes total connection distances of 200–400 m (656–1,312 ft.), depending on the power source, camera power draw, cable, operating conditions, and number of extenders. 400 m is not the range of a single extender.

  • 25 W PTZ camera example: 200 m (656 ft.) total distance using one extender and an appropriate power source.
  • 5 W network camera example: up to 400 m (1,312 ft.) total distance using three extenders at 100 m (328 ft.) intervals and a suitable power source.

Check your setup before ordering

Confirm your camera model and maximum power draw, PoE switch or midspan model, cable gauge, and total cable run against the manufacturer's distance table. No separate power supply is needed for the extender itself, but the installation still requires a suitable upstream PoE source.

View AXIS compatibility information and the distance table.
